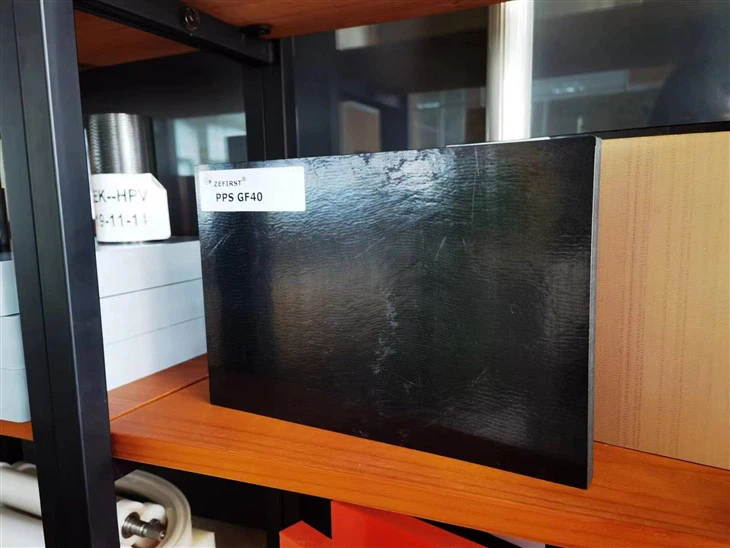

PPS GF40 Daim Ntawv 8MM
Khoom Description
PPS GF40 yog cov khoom siv ua haujlwm siab uas tau tsim tshwj xeeb rau kev ua haujlwm ntev hauv qhov kub thiab txias. Cov khoom no yog tsim los ntawm reinforced polyphenylene sulfide (PPS) thiab yog ntxiv nrog 40% iav fibers los txhim kho nws cov yam ntxwv lub zog thiab seem stability.
Nrog ibLub sijhawm ua haujlwm ntev ntawm qhov ntsuas kub txog li 240 degree, PPS GF40 yog tsim rau siv nyob rau hauv ib tug ntau yam ntawm kev lag luam daim ntaub ntawv uas muaj kev kawm siab thiab durability yog qhov tseem ceeb. Nws lub zog zoo heev thiab nruj ua rau nws zoo tagnrho rau kev siv hauv tsheb, aerospace, thiab electronics industries, qhov twg nws tuaj yeem siv los tsim cov khoom xws li cov khoom siv cav, cov khoom siv hluav taws xob, thiab cov khoom sib txuas.
PPS GF40 kuj tseem tiv taus tshuaj lom neeg thiab thermal kev nyuab siab, ua rau nws haum rau siv nyob rau hauv ib puag ncig hnyav xws li cov uas muaj nyob rau hauv chemical processing nroj tsuag thiab roj refineries. Nws kuj yog ib qho hluav taws xob zoo heev thiab tuaj yeem siv los tsim cov khoom siv hluav taws xob rau cov hluav taws xob hluav taws xob siab.
Ntxiv nrog rau nws cov khoom ua tau zoo, PPS GF40 kuj yog cov khoom siv tsis tshua muaj kev sib txhuam, ua rau nws zoo tagnrho rau kev siv zawv zawg cov khoom uas yuav tsum tau hnav tsawg thiab ua haujlwm siab. Cov khoom siv kuj yog cov resistant rau creep thiab tswj nws qhov seem stability txawm nyob rau hauv lub sij hawm ntev kev ntxhov siab.
Zuag qhia tag nrho, PPS GF40 yog qhov kev xaiv zoo tshaj plaws rau cov ntawv thov uas xav tau lub zog siab, ua haujlwm ntev, thiab ua haujlwm kub. Nws cov khoom sib xyaw ua ke tshwj xeeb ua rau nws tsim nyog rau kev siv ntau yam kev lag luam thiab kev siv uas qhov kev ua tau zoo thiab kev ntseeg siab yog qhov tseem ceeb.
Specification ntawm PEEK Qws ua hauv Zero Engineering Yas
| PEEK (PolyEtherEtherKetone) Semimanufacture Trademark: ZECAN@ Chav: hli,g/cm³ | |||||
| Virgin-PEEK ROD | Qib | Txoj kab uas hla | Ntev | Lub ntiajteb txawj nqus | Xim |
| Virgin Qib | 6,8,10,12,15 | 1000/3000 | 1.32 |
Natutal Dub |
|
| Virgin Qib | 18,20,25,,28,30 | 1000/3000 | 1.32 | ||
| Virgin Qib | 35-85 | 1000/3000 | 1.32 | ||
| Virgin Qib | 90,100,110,120,130,140 | 1000/3000 | 1.32 | ||
| Virgin Qib | 150,160,170,180,200,210,220 | 1000 | 1.32 | ||
Performance Parameter Table ntawm PEEK Qws
| Cov khoom kuaj | Txoj Kev Xeem | Kev tshwm sim | |
| Tensile xeem | ISO 527-1:2012 & ISO 527-2:2012 | Tensile zog | 97mpa ua |
| Elongation ntawm Break | 12.60% | ||
| Flexural Test | ISO 178: 2019 Txoj Kev A | Flexural stress ntawm pa deflection | 119 MPa ua |
| Qhov siab tshaj plaws flexural stress | 156 MPa ua | ||
| Flexural Modulus | 3364MPa ua | ||
| Charpy Notched Impact Strength | ISO 179-1: 2010 | 3.7KJ / ㎡ C (ua tiav kev puas tsuaj) | |
| Rockwell Hardness | ISO 2039-2: 1987 | 112 | |
| Specific Gravity | ISO 1183-1: 2019 Txoj Kev A | 1.302 | |
| Kev nqus dej | ISO 62: 2008 Txoj Kev 1 | 0.06% | |
| Vertical Hlawv | UL 94-2013 Rev.9-2018 Nqe 8 | V-0 | |
| Lub ntsiab lus Coefficient ntawm Linear Thermal Expansion | ISO 11359-1:2014&ISO 11359-2:1998 Txoj Kev A | 100 ~ 120 degree | 59×10-6K-1 |
| 140 ~ 200 degree | 173×10-6K-1 | ||
| Deflection Temperature nyob rau hauv Load | ISO 75-1:2020&ISO 75-2:2013 Txoj Kev A | 181 degree | |
| Melting extrapolated pib kub, Teim | ISO 11357-3: 2018 | 323.7 hli | 325,6 degree |
| Melting peak kub, Tpm | 339.9 d o ua | 341.3 degree | |
| Melting extrapolated kawg kub, Tefm | 348.3 degree | 347.2 d o ua | |
